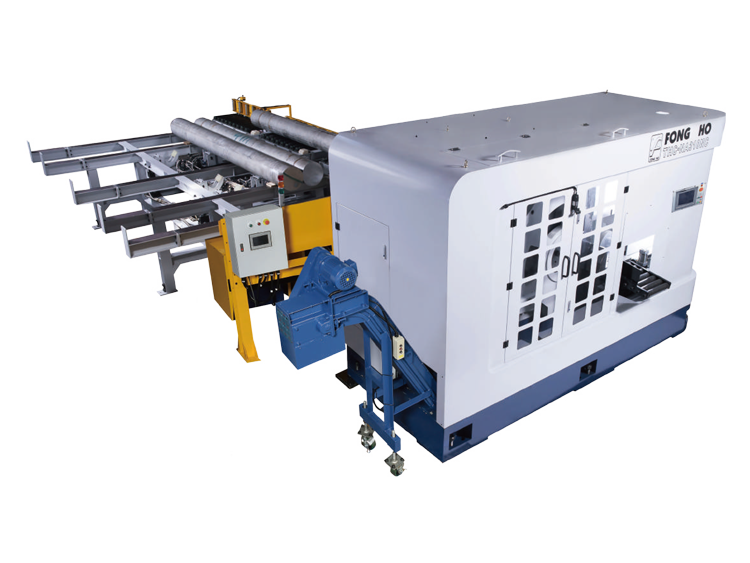

| Model | THC-B200NC |
|---|---|
| Cutting Capacity | TCT carbide sawblade TIP Aluminum carbide sawblade |
| Round Solid Bar (mm) | 50~200 |
| Square Solid Bar (mm) | 40~165 |
| Rectangle (mm) | 40~165 |
| Round Pipe (mm) | -- |
| Square Pipe (mm) | -- |
| Maximum Length of Initial Cut (mm) | 25~90 |
| Waste Material Length at Tail End (mm) | 100 +π Uncut thickness |
| Feeding Length (mm) | 5~500 Continuous cycles |
| Manually Stack Loader Capacity (kg) | 10000 |
| Material Length (mm) | 2000~6000 |
| Material Loading Width (mm) | 1200 |
| Machine Specifications | THC-B200NC |
|---|---|
| TCT Carbide Sawblade | Ø660 x t3.7 × 3.0 |
| Pin Holes + Bore (mm) | 4 × Ø22 × PCD120 × Ø80 4 × Ø22 × PCD180 × Ø80 |
| TIP Aluminum Carbide Sawblade (mm) | 660 x 4.0 x 3.5 x Ø50 ※ 710 x 5.0 x 4.4 x Ø50 |
| Pin Holes + Bore (mm) | 4 × Ø22 × PCD120 4 × Ø22 × PCD180 |
| Spindle Motor (kw) | 37KW x 6P (50HP) |
| Spindle Speeds (rpm) | B200NC(25-90) NA200NC(600-1800) |
| Frequency Inverter (kw) | 45 (60HP) |
| Motor driving roller for feeding (kw) | 0.75 (750HP) |
| Hydraulic Pump Motor (kw) | 3.75-5.5 x 2 (5HP-7.5HP x 2) |
| Hydraulic Pressure (mpa) | 7mpa 70kg／cm² |
| Oil Tank Capacity (ℓ) | About 200 |
| Air Pressure (mpa) | 0.6~0.8mpa 6~8kg／cm² |
| Feed driven method | AC Servo-motor(4.4kw or 5.5kw) driving ball screw transmission for feeding |
| Sawhead driven method | AC Servo-motor(7.5kw or 11kw) driving ball screw transmission for cutting |
| Feeding Vise | Horizontal hydraulic type |
| Main Vise | Horizontal and vertical hydraulic type , one set each |
| Machine Dimensions and Weight | THC-B200NC |
|---|---|
| Machine Size (mm) | 10200 x 4970 |
| Weight (Machine + Feeder) (kg) | 200,000 |
Material: Steel
| Sawblade Dia. |  |
 |
 |
| Ø600 | Ø50-200 | 40-165 | 40 x 165 |
| Model | Servo-motor Drive Ball Screw Feed | Hydraulic Driven Sawhead Feed for Cutting Motion | Sawhead Driven by Servo-motor Ball Screw Transmission for Cutting |
|---|---|---|---|
| THC-A70NC | |||
| THC-B70NC | |||
| THC-B76NC | |||
| THC-B90NC | |||
| THC-BNA102NC | |||
| THC-A101NC | |||
| THC-B101NC | |||
| THC-A130NC | |||
| THC-B130NC | |||
| THC-A150NC | |||
| THC-B150NC | |||
| THC-A165NC | |||
| THC-B165NC | |||
| THC-NA168NC | |||
| THC-BNA168NC | |||
| THC-B200NC/B230NC/B260NC | |||
| THC-NA200NC/NA310NC |
A Manual Loading
B Auto Lifting
C Auto Rolling
D Auto Stopper
E Auto Lifting
F Auto Unloader
G Auto Feeding
H Auto Locating
I Auto Hydraulic Vise Feeding
J Servo-motor driving Ball Screw transmission for feeding
K Hydraulic Main Vise And Top Vis
L Sawhead driven by Servo-motor Ball Screw transmission for cutting
M Automatic cycle continuous actio
N Automatic Collection Device (Optional)
The manual stack loader is custom made by customer's requirement.
| Length | 3-7 M |
| Diameter | Ø100- Ø310 |
| Weight | 10- 15 TON |
| Length+Width | L7000 + W4000mm |
